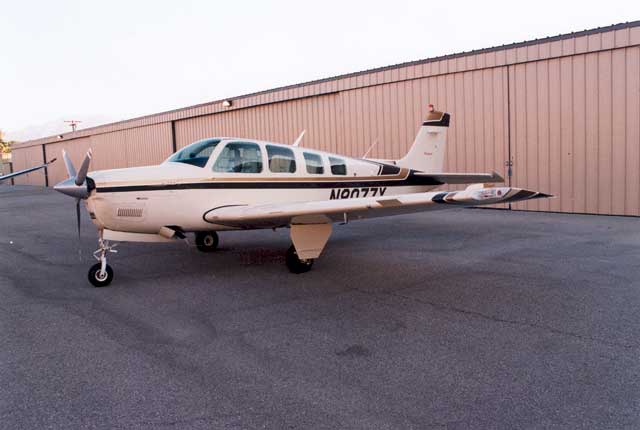

N8077X A36 Bonanza Weight And Balance Calculator

This calculator requires the use of Javascript enabled and capable browsers. This utility is designed to calculate weight and balance of THIS SPECIFIC 1990 A36 Beechcraft Bonanza. It is up to the pilot to make the final determination of airworthiness as this is a general indicator. The empty weight does NOT include pilot weight as some people think Beech aircraft do; it does include the unusable fuel, all hydraulics and 12 quarts of engine oil. Enter the weights of the appropriate fields in the left column. Middle seats are for Normal Seating, or Club Seating; use one selection or the other but NOT BOTH. Adjust or enter the arm if needed (rear is fixed). Enter the USEABLE quantity of fuel in US Gallons (usable is -6 gallons from the total fuel on board, in this case from 80 US gallons). Fuel is calculated at 6 pounds per gallon of useable fuel. All calculation is automatic but you may click on Calculate to manually process the data (required on certain browsers) or on Clear Values to reset the calculator to the default values. You will not be able to manually change calculated fields; you must recalculate. Compare the balance and moment data to the CG envelope on your owner's information manual. Be sure to click on Clear Values to reset the default conditions if you do more than one calculation. If you change the values in a field from a positive value to "no entry", be certain there is a zero (0) in the field. For example, if you switch from normal seating to club seating, be sure to enter a zero in the normal seating field. If you remove the middle seats, set both arms at a common arm value, in this case 115, and put in a negative weight for the weight of the seat(s) removed. If you remove one seat, and a passenger is in the adjacent seat, deduct the weight of one seat from the passenger's weight. This utility will CORRECTLY compute a negative moment if NO passengers are there AND either one or both seats are removed. You may do the same for the rear seats, one or both, but the arm is fixed as the seats are not forward/aft adjustable. (The empty weight includes all 6 seats.) You are responsible for determining the weight of each seat as front, rear and middle seats are different weights and may change with time or interior work. You may use ONE or BOTH baggage fields. PLEASE NOTE: You should calculate weight and balance for take-off, mid-flight and landing configurations as a MINIMUM! Please keep in mind the fact that not only weight is critical but distribution of that weight is just as critical. IT MUST be checked for the CG situations of different time periods in the flight BEFORE the flight! It is VERY possible to be well under useful load and be out of CG due to distribution! Therefore, the Calculated Potential Useful Load Remaining field is a guideline only! Do NOT guess; check it prior to each flight! UTC, Coordinated Universal Time, popularly known as GMT (Greenwich Mean Time), or Zulu time, and local times are displayed to authenticate you calculation should you wish to print it. Local time differs from UTC by the number of offset (the last number in the Zulu display field), + (TO) or - (FROM), hours of your timezone. Offset times that are + (or no indication) are added TO the local time to yield UTC. Offset times that are negative are subtracted FROM the local time to yield UTC.

General Weight and Balance
Required Data Entry
StationWeightArmMoment/100Information
Empty Weight Updated 17-Feb.-2004
Gross Weight Useful Load
Pilot/Front Passenger Seat position range is from 75
(all forward) to 82 (back)
Middle
Passengers
Normal Seating
Seat position range is from 115 (all forward) to 120 (back), both seats facing forward
Middle
Passengers
Club Seating
Seat position range is from 111 (all forward) to 115 (back), both seats facing backward
Rear Passengers Arm is fixed
Cabin Bags Arm Of Bags - 150 (behind center seats) 91 (behind front seats)
Compartment Bags Arm Of Bags - 160 (closest behind rear seats) to 164 (toward rear of plane)
Fuel Quantity
Useable
US Gallons (Total = Usable +6)
Zulu Local



Ramp Condition Calculated
Calculated
Calculated Potential
Useful Load
Remaining
Calculated Center Of Gravity
Limit Forward         Limit Aft
Disclaimer: USE AT YOUR OWN RISK!
The pilot is solely responsible for accurate weight and balance calculation of his aircraft.


N8077X
Updated: 8/17/11
